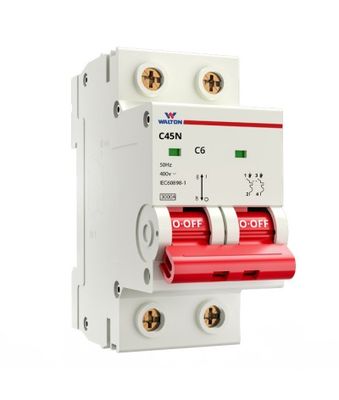

6 AM Double Pole Circuit Breake WALTON

- Standards: IEC 60898-1- Rated current In (A): 6 A- Rated voltage Un (VAC): 230/400 V AC- Rated frequency (Hz): 50/60 Hz- Rated impulse withstand voltage (Uimp): 4KV- Rated short-circuit capacity (A): 3 KA- Rated insulation voltage (VAC): 500 V- Number of poles: 2- Tripping Curve: C- Thermal operating limit (In): 1.13 - 1.45 - Degree of protection: IP20, with connected conductors- Electrical life (times): 10,000- Mechanical life (times): 20,000- Mounting position: Any- Fire resistance according to UL 94: V0

categories

Category List

All products

•
•
•
•
•
•
•
•
•

Details:

• Warranty
  10 YEAR

- Standards: IEC 60898-1

- Rated current In (A): 6 A

- Rated voltage Un (VAC): 230/400 V AC

- Rated frequency (Hz): 50/60 Hz

- Rated impulse withstand voltage (Uimp): 4KV

- Rated short-circuit capacity (A): 3 KA

- Rated insulation voltage (VAC): 500 V

- Number of poles: 2

- Tripping Curve: C

- Thermal operating limit (In): 1.13 - 1.45

- Degree of protection: IP20, with connected conductors

- Electrical life (times): 10,000

- Mechanical life (times): 20,000

- Mounting position: Any

- Fire resistance according to UL 94: V0

6 AM Double Pole Circuit Breake WALTON

360 BDT450 BDTSave 90 BDT

• SIZE/AMPERE
  • 6 AM
  • 10 AM
  • 16 AM
  • 20 AM
  • 25 AM
  • 32 AM
  • 40 AM
  • 50 AM
  • 63 AM

1

add_to_cartbuy_now

Details:

• Warranty
  10 YEAR

- Standards: IEC 60898-1

- Rated current In (A): 6 A

- Rated voltage Un (VAC): 230/400 V AC

- Rated frequency (Hz): 50/60 Hz

- Rated impulse withstand voltage (Uimp): 4KV

- Rated short-circuit capacity (A): 3 KA

- Rated insulation voltage (VAC): 500 V

- Number of poles: 2

- Tripping Curve: C

- Thermal operating limit (In): 1.13 - 1.45

- Degree of protection: IP20, with connected conductors

- Electrical life (times): 10,000

- Mechanical life (times): 20,000

- Mounting position: Any

- Fire resistance according to UL 94: V0
